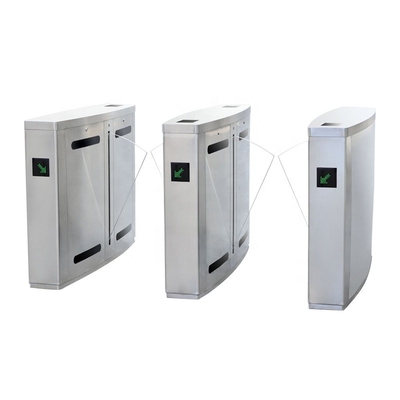

304 stainless steel electronic access turnstyle rfid flap barrier turnstile, turnstile gate, glass gate

1.0 Units
MOQ
304 stainless steel electronic access turnstyle rfid flap barrier turnstile, turnstile gate, glass gate
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Model Number: YAT6820
Product name: access turnstyle rfid Electronic flap barrier turnstile,turnstile gate
framework material: 304 stainless steel
size: 1400*300*1000mm
Net Weight: 75KG/unit
Entrance width: 550-600mm/850 mm
Normal life-span: 5-8million times
Transit speed: 30-45 persons/min
Communication interface: RS485
Working environment: indoor, outdoor
material of wings: acrylic glass
Grundinformation
Model Number: YAT6820
Zahlung und Versand AGB
Packaging Details: packed in Export wooden case, inner packed in carton and EPE foam Brand or neutral package Packing size:127*37*107cm
Supply Ability: 500 Pair/Pairs per Month
Produkt-Beschreibung
Product Description
Security flap turnstiles are highly configurable both in material and in features. This saves your budget and provides exactly the security solution you want.
Elegant and discreet security from our most compact, economic, and popular model.
Designed for high-traffic lobbies; exceeds safety and security requirements for a compact unit.
Fast-acting “angel wing” glass barriers retract fully into the pedestals upon authorization.
Housing material
304 stainless steel
Housing size
L1400*W300*H1000mm(optional)
Entrance width
500-600mm/850mm(optional)
Housing thickness
1.5mm(optional)
Net weight
75Kg/unit
Temperature
-10 ℃-50℃
Humidity
≤90%
Normal life-span
5-8 million times
Operation speed
30-45person/min
Working environment
indoor
Glass material
Acrylic glass/PC glass
Direction
Single direction/Bi-direction
Input interface
Dry contact signal or +12V level signal or RS485 communication signal
Communication interface
RS485(distance less than 1200m)
Functions and characteristics:
1.being able to program running status by the small keyboard in the main board
2.Preventing pedestrian from hurt
3.Light and sound alarm function
4.Doors are automatically locked until opening signal is received.
5.Doors synchronization (adjustable)
6.Automatically reset function: It will automatically lock if the pedestrian has not pass turnstile in the pre-set time after the opening. The passing time is adjustable
7.Automatically open the gate when power off (security function)
8.Several card readers are attachable, relay out signal can be received
9.Single direction or bi-direction (optional)
10.It can be directly controlled by remote control.
APPLICATIONS
1.Bus station, school,factory entrance and exit management
2.Tourist attraction Ticketing system
3.Time attendance, access control, consumption management for Building office
4.Special aaccess management system
YAT6820 size drawing
YAT6820 in factory
Flap turnstile +face machine system
Outdoor glass flap turnstile with different color Acrylic glass door
Flap turnstile YAT6819
